tiga and tiga+ are the innovative further developments of the SOMMER garage door operators base+ and pro+
The requirements of underground garage operators are particularly high. These operator systems are often higher and exposed to frequent strain. At the same time, they must ensure maximum security and protection. The solution for the operators tiga and tiga+ is implemented in accordance with the usual SOMMER principles: the right mixture of strength and intelligence.
Reliable technology for underground or group garages
Quality
Universal operator for sectional doors, ceiling sliding doors, swinging doors, up-and-over doors and roller door/side-sectional doors
Integrated LED technology: durable,
energy-saving and efficient lighting
Saves power: <1 watt standby
Made in Germany
* Special fitting required
Safety
Motor with high automatic locking and active
counter-pressure at all points in the event of an
attempted break-in
Connection option for battery pack for emergency operation in the event of a power failure
Locking magnet for motor (secure against break-ins), locks in any position, even during ventilation function/partial opening and final position door OPEN (Lock # 1651V000 available as an option)
Thanks to the integrated emergency release, the carriage can be engaged and disengaged in any position
Bi-directional, secure SOMloq2 radio system
Versatility
Numerous accessories for expansion such as the memory extension Memo (increases the storage space to approx. 450 units, optionally available: Memo (#10373) or motion detector (#S10343-00001))
Additional connection options without spiral cable directly on carriage slip door contact and safety contact strip (OSE or 8k2)
Universal power supply to the track (can either be from the front or the rear)
Removable carriage without track disassembly
Short cable runs with wall mounting for external accessories (photo eye/warning light/ external buttons...)
Easy to install and variable ceiling attachment
Intelligence
Automatic learning process: self-learning force curve with continual adjustment, e.g. summer/winter mode
Optimal speed profiles for quick opening and secure closing
Secure unit consisting of door and operator in accordance with door standards with over 3000 certified door operator combinations. You can find the complete reference list: http://som4.me/cgdo
Automatic calibration of door operation through direct entry of measured operating forces
Pre-selectable door types via DIP switch
Active braking for moving doors
Countless setting and querying options via SOMlink
Gear-saving soft start/stop
Automatic end position detection in Door CLOSE when programming, the closing pressure can also be individually adapted to the structural conditions
Flexibility
Separate control housing for wall installation
During the installation, the control unit will not impede the passing of cars
Automatic closing function possible
The underground garage operators tiga and tiga+ use the same carriage. This reduces the storage space and storage costs for spare parts
Versatility in a box
Flexible connection options using the separate control unit housing

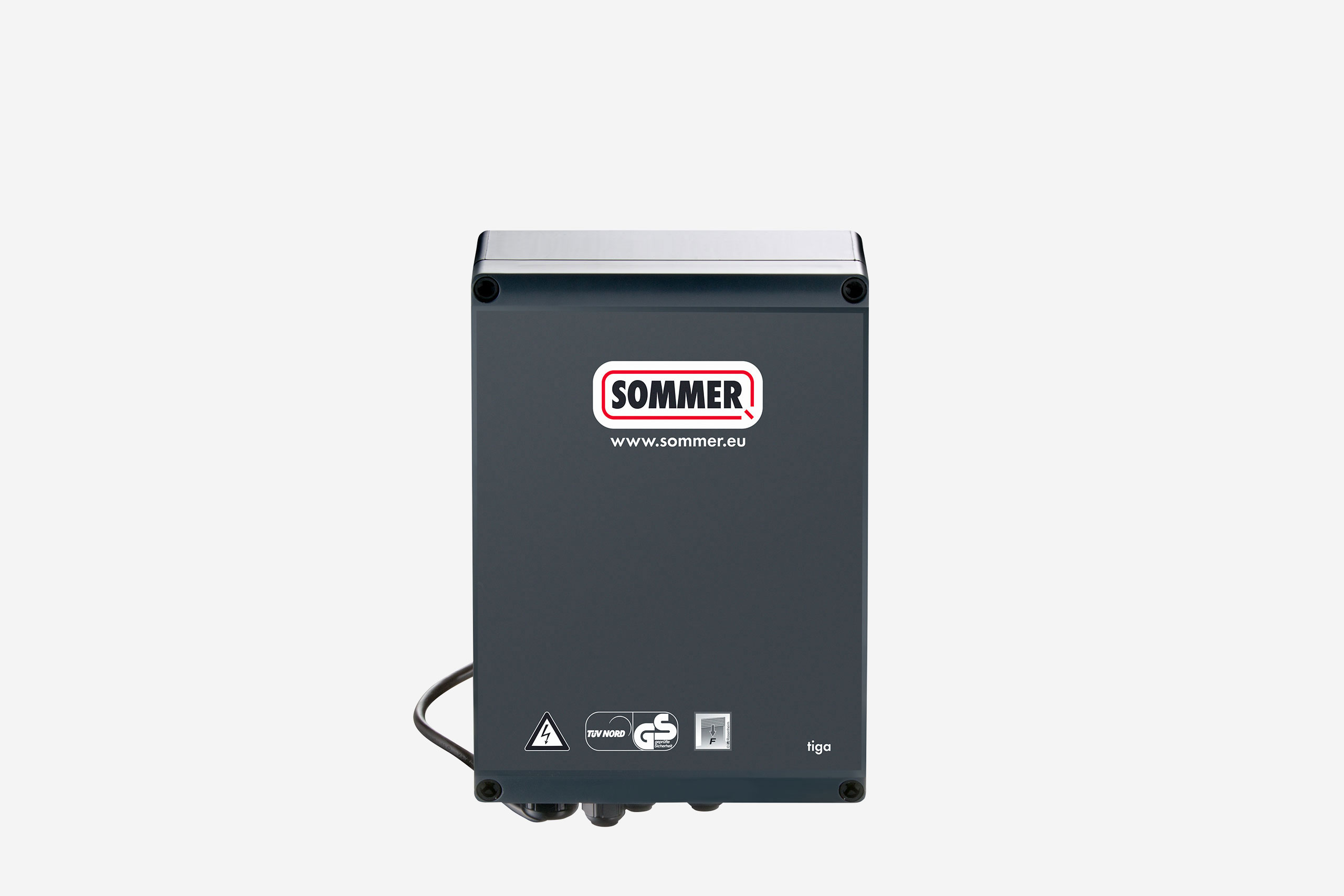

Control unit tiga
Slot
Memo tiga
Connection
Red traffic light interior/exterior 24 V/ 7 Watt
Slot
Battery
Connection
Safety (e.g. emergency stop)
Connection
MUFU1 multifunctional relay
Slot
Relay
Connection
Warning light, 24 V/3 W
Connection
2/4-wire photo eye for door CLOSED 24 V DC or 2-wire frame photo eye for door CLOSED

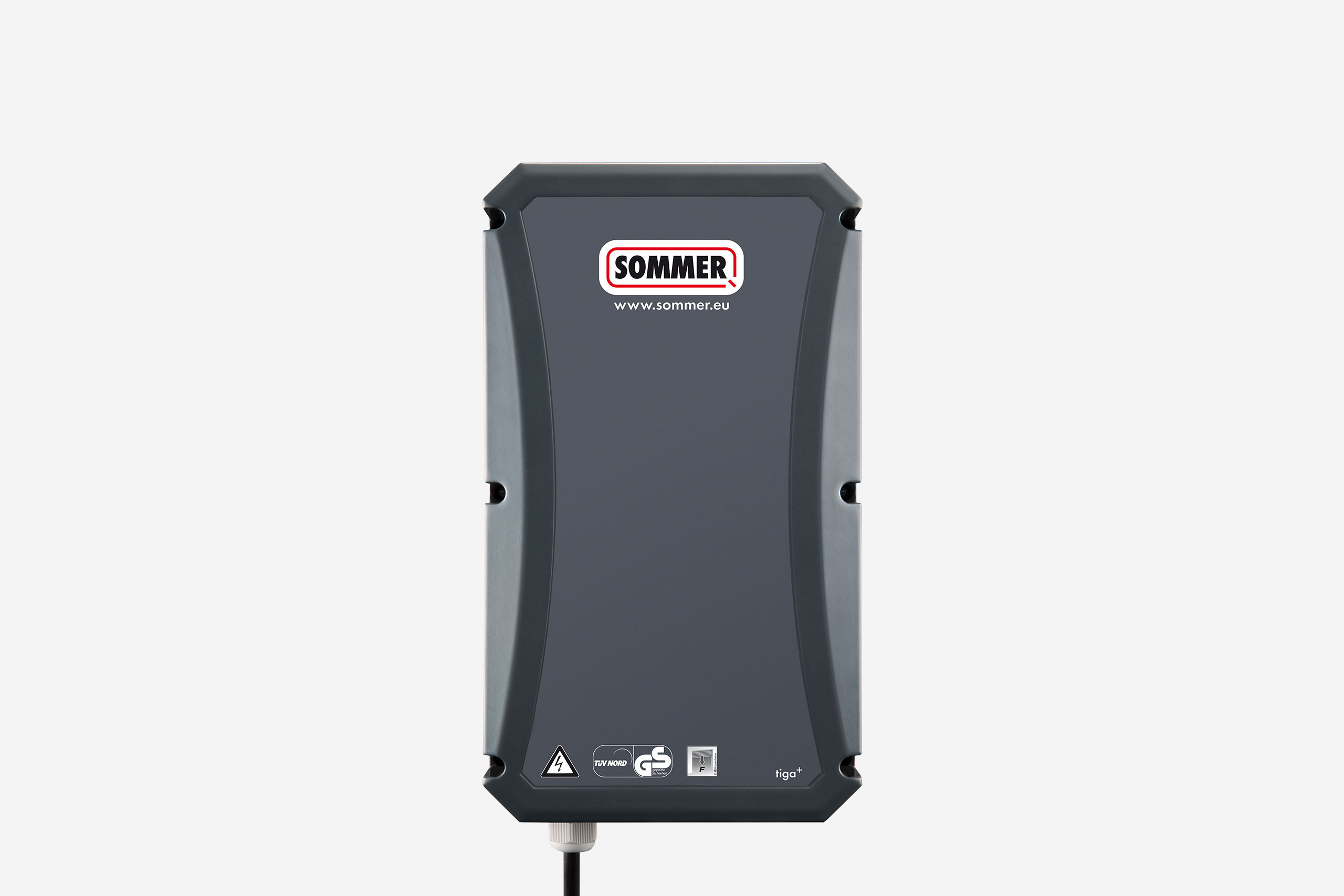

Control unit tiga+
Connection
Red traffic light interior/exterior 24 V/ 7 Watt
Connection
Safety (e.g. emergency stop)
Connection
Timer contact interior/exterior request side
Slot
Battery pack
Connection
MUFU1/ MUFU2 multifunctional relay
Connection
2/4-wire photo eye for door CLOSED 24 V DC or 2-wire frame photo eye for door CLOSED
Slot
Memo tiga
Connection
Induction loop
Connection
Green traffic light interior/exterior 24 V/ 7 Watt
Connection
OSE/8k2 for door OPEN/CLOSED
Connection
Warning light, 24 V/3 W
Connection
Alarm, e.g. fire alarm system
Connection
4-wire photo eye for door OPEN 24 V DC

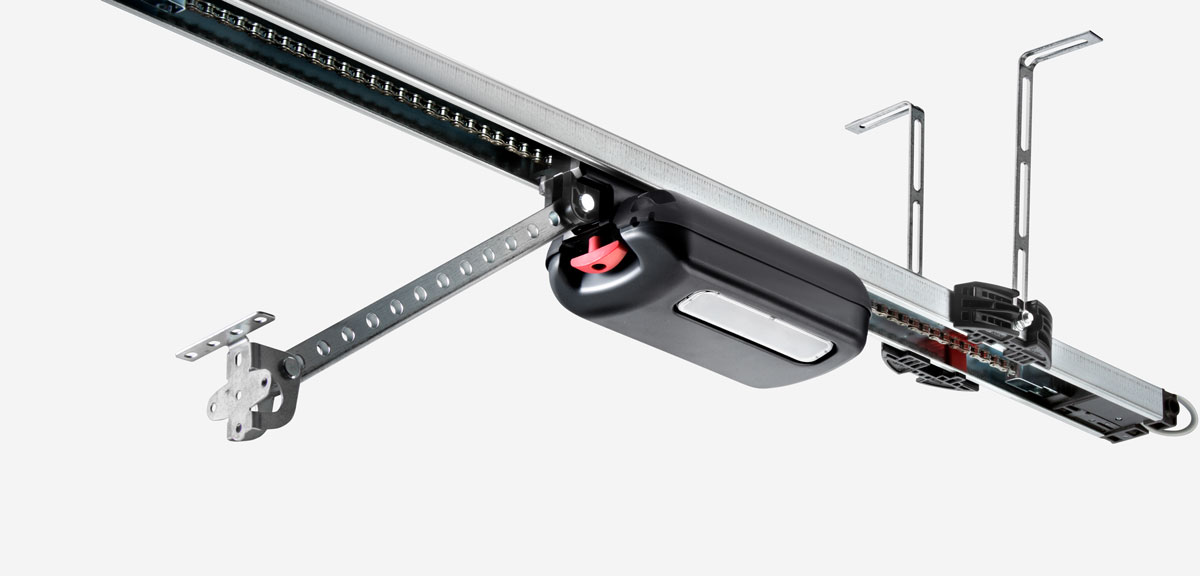

Operator
Track unit | Rails unit
The track unit (standard equipment) opens /closes sectional doors up to a height of 2,500 mm, swing doors up to a height of 2,750 mm
By extending the track, even taller doors can be opened
(extension set # 10460V000)
Chain
High-quality fixed chain
(galvanic nickel-plated)
Wear- and maintenance-free, pre-tensioned via springs with high tensile strength
Carriage
Certified restriction of closing forces acc. to EN 12453 by electronic
motor monitoring (Ift Rosenheim-certified)
Ceiling suspension unit | Ceiling suspension bracket | Ceiling bracket | Ceiling attachment | Ceiling mounting unit | Ceiling suspension fitting | Ceiling mount
Flexible and versatile
Plug and Play
Create your own optional value-added product
The modular system structure makes it possible to expand the SOMMER tiga or tiga+ with countless accessories. All accessories are easy to install since sockets are colour-coded.
Lock
Locking magnet which mechanically blocks the motor in any position up to an attack force of 300 kg (certified), thereby improving the existing break-in protection. (mechanical locking mechanism
of the operator)
Memo
Used to expand the memory to 450 transmitter commands. If service is required, the saved transmitters can be easily moved to a new carriage.
Buzzer
Three functions in one product: The alarm buzzer detects a break-in attempt and issues a warning in the form of a loud signal tone. The warning buzzer, on the other hand, outputs an acoustic signal during the closing process or when the pass door is open.
LED traffic light red or green
For optical two-way traffic control of your door system. Offers durability for more than 30,000 hours and is well-suited for both outdoor and indoor use. Can also be combined as a red-green traffic light.
Frame photo eye
Reliable and precise obstacle detection via the precise detection of objects. The photo eye is mounted so that it is protected against damage. Adjustment with a bicycle, tricycle or rubbish bin is therefore not possible. (service use) Can be installed directly in the frame.
Relay for tiga
Additional relay for additional switching of a garage or courtyard light or another 230 V consumer.

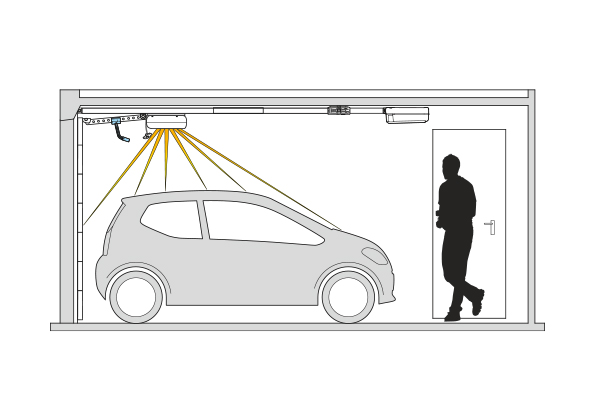

Motion
A passive infrared sensor detects invisible thermal radiation from moving bodies (people/animals etc.) and reacts. When you enter the garage, the lighting on the operator is automatically switched on so that you can move around safely.

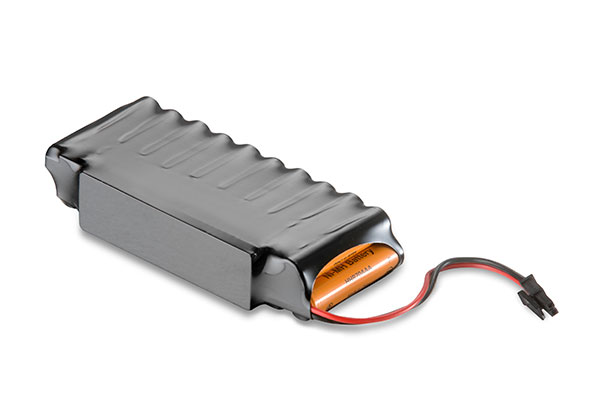

Accu for tiga
Supplies energy to the operator for up to 12 hours for maximum 5 door cycles > in the event of a power failure.

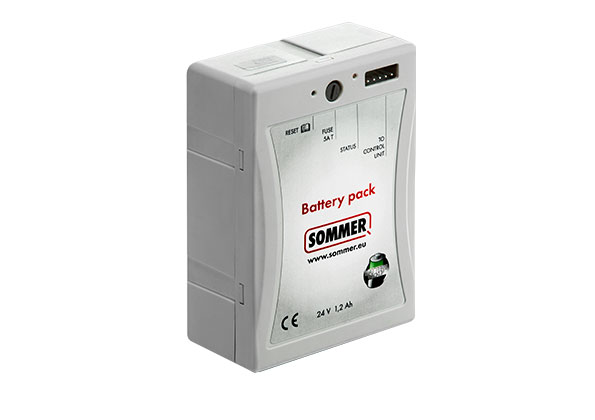

Battery pack for tiga+
Supplies energy to the operator for up to 12 hours for maximum 10 door cycles in the event of a power failure.
Pull button
For conveniently opening the door by hand from the car.

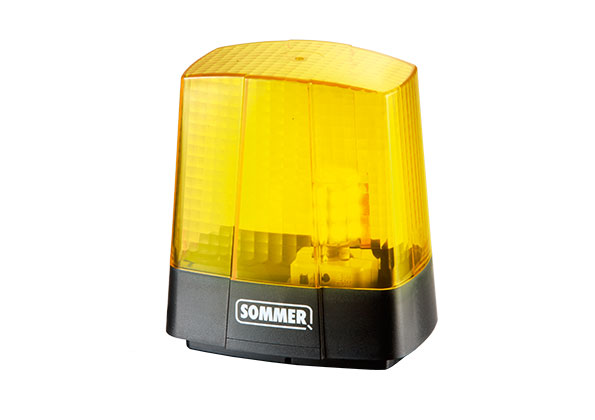

LED warning light
For additional optical hazard detection.
LIFTer
For easier and more convenient installation of the tension springs on sectional doors. It is no longer necessary to lift the door yourself, making installation of the door even easier and quicker.
The LIFTer is only available for specialist dealers.
You can find all technical details as a PDF download
Highest transmission security with SOMloq2
The bidirectional radio system SOMloq2 offers security and comfort, transmitting encrypted radio signals in the sender and receiver direction.
The system is thus tamper-proof, as it is not possible to secretly access the transmission code with SOMloq2.
The system also offers:
Feedback on whether the sent command is processed by the recipient
The option of querying door positions/reception status
Improved range and higher reliability due to the hop function, since the signal is actively forwarded by the SOMloq2 receiver
Maximum protection against hackers due to 128-bit AES encryption with Rollingcode
Auto-repeat function for convenient opening while approaching the object
Downward compatible with the Somloq Rollingcode radio system, making it possible to control existing operators and radio receivers
Long-standing experience (since 1980)
Made in Germany.
SOMMER and our subsidiaries and partners worldwide offer you everything from a single source. Our hardware and software is developed completely in-house and is renowned for the outstanding quality and innovative technology “Made in Germany”.
